Integration

Introduction

This document describes how to use the Orbiter module to leverage Noble cross-chain functionalities.

The Orbiter module is a payload-based module, which is capable of parsing cross-chain metadata from different sources, executing state transitions, and then forwarding funds to a destination counterparty. To leverage the Orbiter functionalities, integrators only have to send funds to the Orbiter account with the requested metadata and via the correct entrypoint. Refer to the architecture docs for more details.

The recipient of the cross-chain transfer MUST be the Orbiter module address:

Mainnet	Testnet
noble15xt7kx5mles58vkkfxvf0lq78sw04jajvfgd4d	noble15xt7kx5mles58vkkfxvf0lq78sw04jajvfgd4d

Payload Creation

This section describes how to create an Orbiter payload. Based on the bridge protocol used to initiate the transfer, a specific payload must be provided. This is associated with the entrypoint for the particular protocol. For example, IBC allows to pass metadata along with a cross-chain transfer via the memo, which is a JSON-formatted string. Other protocols, like CCTP, require the payload to be in the bytes format. Refer to the payload docs for more details about the payload fields and the supported actions and forwardings.

IBC Payload

CLI

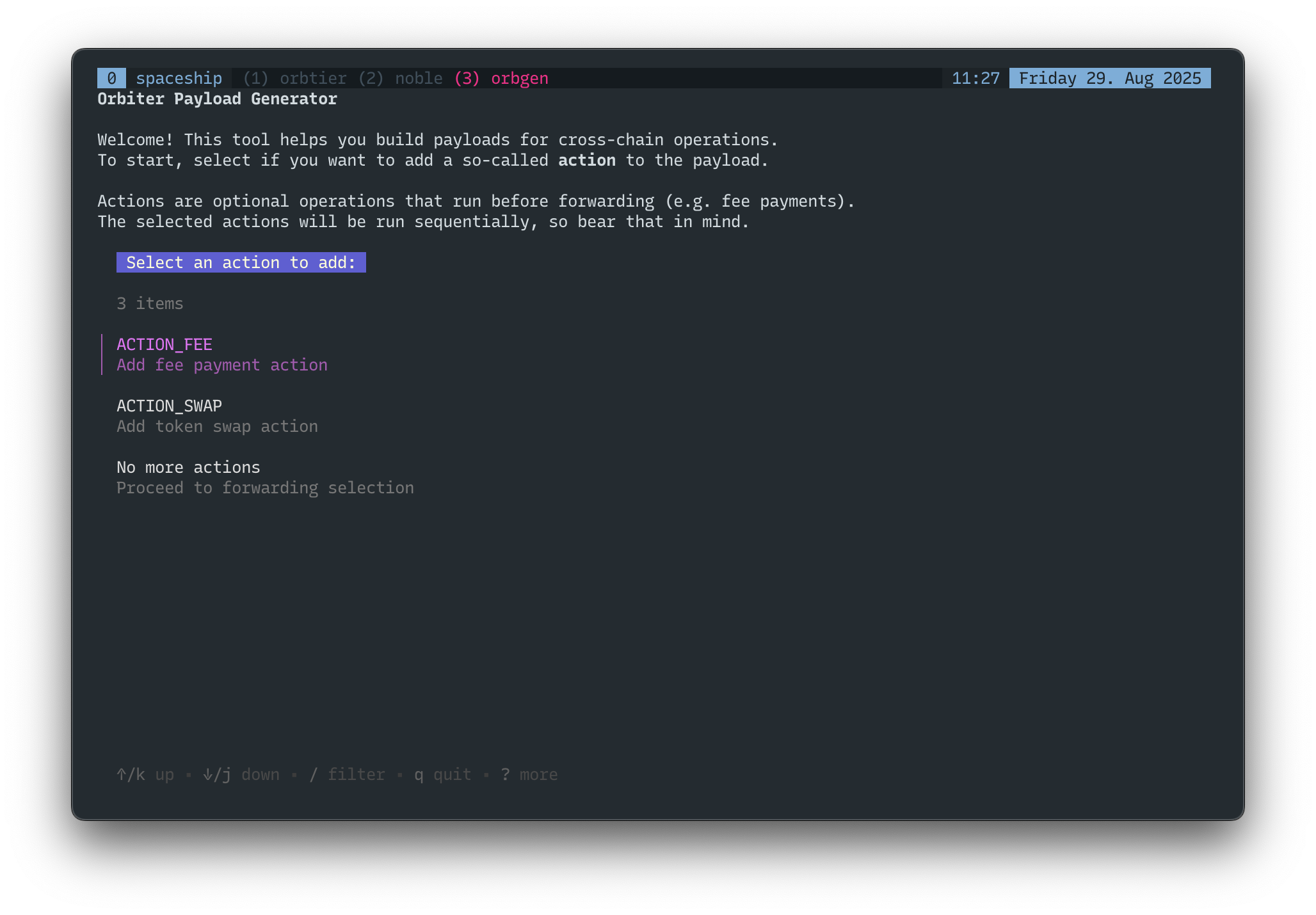

For ease of use, we have provided a terminal utility that you can check out at noble-assets/orbgen.

Orbgen allows you to create the required payload to pass along with the cross-chain transfer through a simple TUI. Just follow the steps, provide the required information, and the payload will be printed on your terminal.

Manual Process

This section describes how to create a valid IBC payload in Golang:

1. Import the required packages from the Orbiter repo:

   import(
     "github.com/noble-assets/orbiter"
     "github.com/noble-assets/orbiter/types/core"
     "github.com/noble-assets/orbiter/types"
     "github.com/noble-assets/orbiter/testutil"

     actiontypes "github.com/noble-assets/orbiter/types/controller/action"
     forwardingtypes "github.com/noble-assets/orbiter/types/controller/forwarding"
   )

2. Create the forwarding via a factory function:

   forwarding, err := forwardingtypes.NewCCTPForwarding(
    destinationDomain,
    mintRecipient,
    destinationCaller,
    passthroughPayload,
   )

3. Define the action and set the attributes:

   action, err := actiontypes.NewFeeAction(
    &actiontypes.FeeInfo{
     Recipient:   feeRecipientAddr,
     BasisPoints: basisPoints,
    },
   )

4. Create a wrapped payload:

    payload, err := core.NewPayloadWrapper(forwarding, action)

5. Marshal the payload structure into JSON using the codec with registered interfaces:

    encCfg := testutil.MakeTestEncodingConfig("noble")
    orbiter.RegisterInterfaces(encCfg.InterfaceRegistry)
    payloadBz, err := types.MarshalJSON(encCfg.Codec, payload)
    payloadStr := string(payloadBz)

6. The payload is now ready to be added in the ICS20 memo field.

A concrete example for the payload creation can be found in the file e2e/ibc_to_cctp_test.go.

Important Notes

• The Noble chain commits to executing the outgoing transfer using the protocol specified in the forwarding field as part of the same transaction that processes the incoming request.
